Smart Industrial High‑Speed Camera Systems
High-speed video that keeps running — in step with your measurements.
Continuous recording, not short bursts. Measurement data captured on the same clock as every frame. Built for 24/7 industrial production lines.
- Frame rate, full frame
- 1,280 × 864 px @ 1,318 fps continuous
- Frame rate, reduced ROI
- 1,280 × 4 px @ 168,000 fps continuous
- Minimum exposure time
- 1 µs
- Interface / data rate
- USB 3.0, up to ~300 MB/s

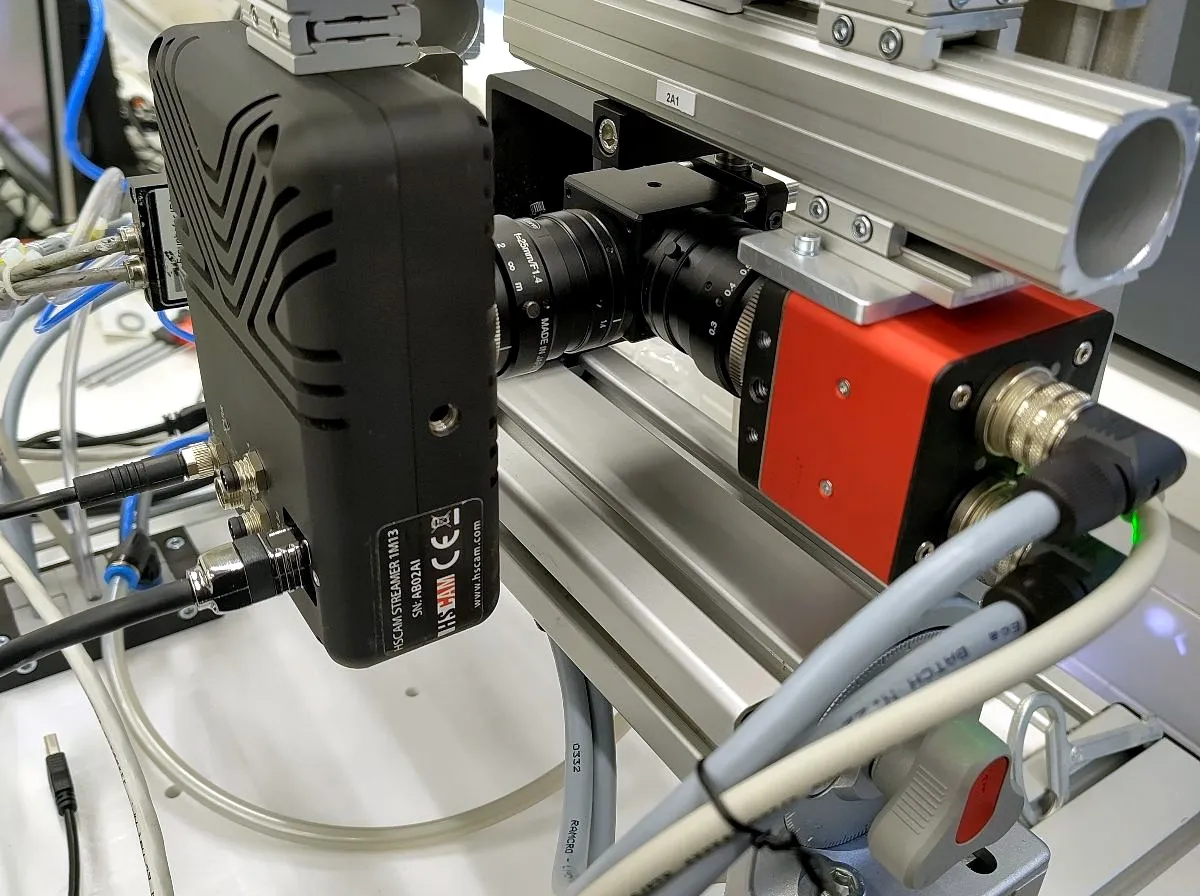

STREAMER 1M13 · motion-stage test rig
Applications
Start with the problem you are trying to see
Each application page walks through a real setup: what went wrong, what the customer asked for, and the footage and figures that came out.
Demonstration on a high-speed shear
Without frame-accurate sync, at 140 m/s
~10 ms error → up to 1.4 m ambiguity
Steel & rolling mill
Every cut and every jam, recorded around the clock
Uneven cuts and wire jams on a shear line, filmed at thousands of frames per second, with a week or more of triggered recordings and synchronized measurements.
See the setup and footage
Trade-show demo · 2 cameras + ADC graph
Captured on the camera's clock
4× 16-bit ADC · 2× GPIO
Synchronized video & measurement
Is your video out of step with your measurements?
How video and sensor data stay on one clock, shown on the steel line and in a two-camera trade-show demo triggered by a measurement threshold.
Read the application
Fraunhofer IIS/EAS Dresden · research
Realtime Droplet Inspection
STREAMER watches, NANO picks the frame
STREAMER observes the whole droplet path at a high frame rate to generate AI training data; NANO triggers on the image and characterizes the frame it captures, on the camera.
See the setupProducts
One camera platform shipping, one in development

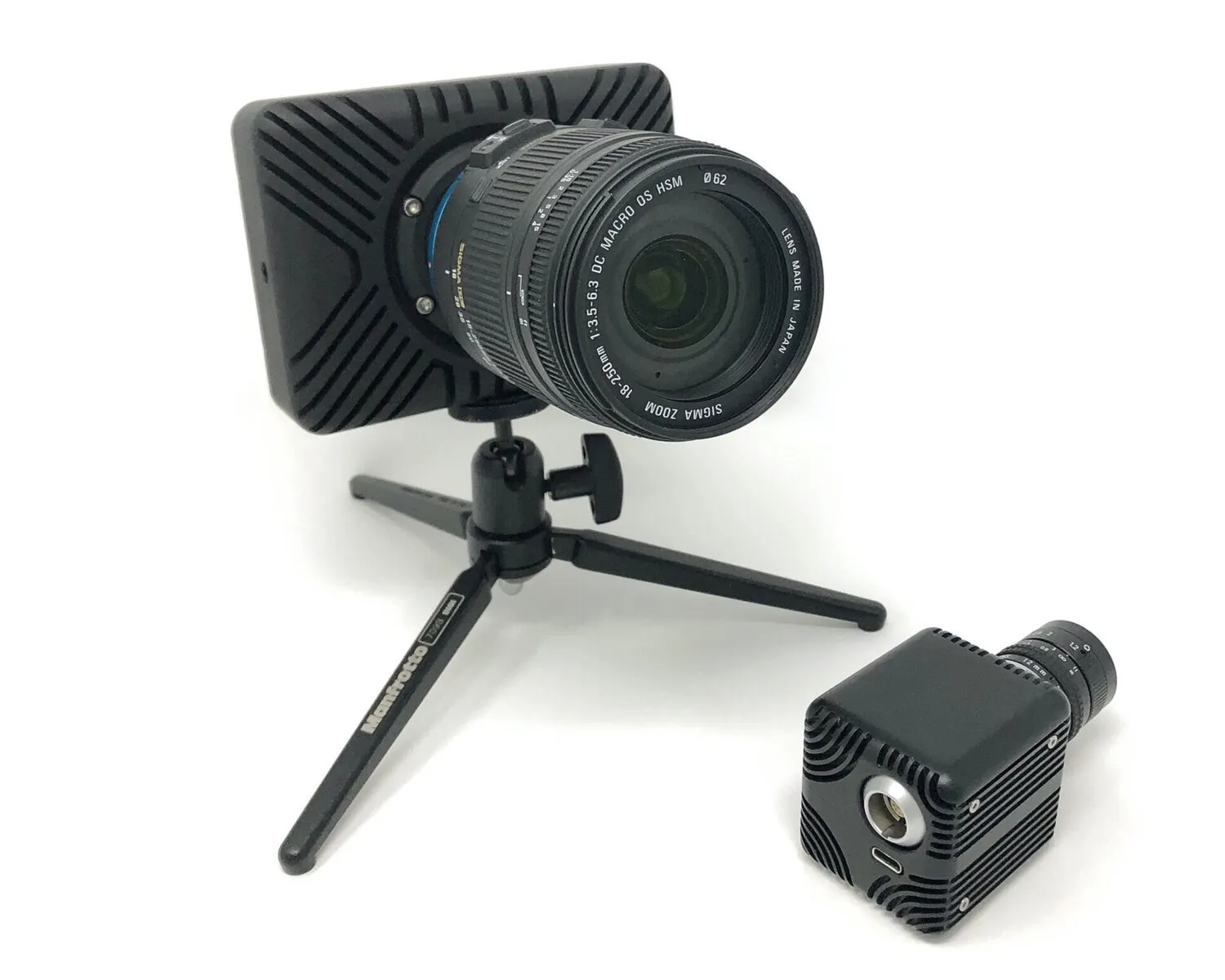

HSCAM STREAMER
Continuous high-speed streaming cameras. Monochrome (1M13) and color (1C13) variants. Used in industrial monitoring, synchronized multi-camera acquisition and scientific instrumentation.
HSCAM NANO
A camera built on a Vision System on Chip (VSoC) that processes images on the sensor chip, with a microcontroller and NPU for on-camera AI. Chip technology invented by Fraunhofer IIS. Prototypes are ready for evaluation and pilot projects.
Pilot projects
From a process problem to a pilot
STREAMER 1M13 is available today. If a fault in your process is rare, fast or unexplained, we check together whether recording can help. NANO is a prototype and is handled separately, as an integration project.
-
1. Describe process and problem
You tell us what the process does and what goes wrong. A short description is enough.
-
2. Check technical suitability
Together we look at line of sight, speed, image area, lighting, signals and environment.
-
3. Plan a limited test
Scope, time frame and costs of the test are agreed together before anything starts.
-
4. Evaluate and decide
We go through the recordings with you and decide on the next step.
Scope, time frame and costs are agreed individually for each test.
Technology
Streaming, compression, synchronization and FPGA — one continuous architecture
What runs in STREAMER deployments today. Each figure says which quantity it describes.
Frame rate, full frame
1,318 fps at 1,280 × 864 px
Continuous acquisition — triggers mark or retain events instead of starting capture from idle.
Data rate, per camera
~1.44 GB/s → ~300 MB/s
At 1,280 × 864 px and approximately 1,300 fps (8 bit). Adaptive, edge-preserving in-camera compression of about 5:1 allows continuous streaming over USB 3.0 and direct recording to a suitably specified SSD.
Synchronization
100 MHz camera clock
Video frames and measurement samples are acquired on the camera’s internal 100 MHz clock, so each measurement can be tied to the frame it belongs to.
FPGA tier, latency
< 1 µs
For response times a software pipeline can't reach — HSCAM implements this tier today.
Recorded examples
A smaller image area is what buys the higher frame rate
Frames from real STREAMER recordings, each at its own ROI and frame rate.
1,024 × 280 px · 4,041 fps
Wire cut by a rolling-mill shear, strobe-lit.
See the application
1,024 × 104 px · 10,702 fps
Same shear, a narrower strip read out for a higher frame rate.
See the application
1,280 × 128 px · 8,000 fps
Backlit paint droplet and satellite droplets, Fraunhofer IIS/EAS research rig.
See the application
1,280 × 864 px · 1,000 fps
Trade-show demo: 1C13 and 1M13 in MultiCAM mode, with a synchronized 4-channel ADC graph.
See the applicationThe steel-mill page lists the exposure range used in that installation.
References
Organizations using or working with HSCAM camera systems
Engineering
Customer-specific integration, not one-size-fits-all
Script camera behaviour in Python, extend it through the camera SDK, adapt the trigger to your process, or extend the measurement channels. Mechanical housings and optics are engineered per installation. The underlying streaming and FPGA architecture is covered under Technology.
- Python SDK
- < 100 ms latency
- Camera SDK
- < 100 ms latency
- Trigger customization
- Photocell or image-based
- DAQ extension
- < 1 µs latency
Talk to an engineer
Describe your application: what you need to see or measure, the frame rate and ROI you expect, whether video must be synchronized with measurement signals, and the environment.
